TRENDnet TI-WP100, Industrial AC1200 Wireless Gigabit PoE+ Router
5.0 (66 items)
Limited Time SaleUS$257.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 230517834 | Release Date | 2026/06/18 | List Price | US$172.00 | Model Number | 230517834 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TRENDnet’s Industrial AC1200 Wireless Dual Band Gigabit PoE+ Router, model TI-WP100, features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network. It supports dual-WAN hybrid connections (Ethernet for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users. Four gigabit PoE+ ports enable users to power access points, IP cameras, and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W PoE power budget. The Industrial AC1200 gigabit router is equipped with an IP30 rated metal housing, and designed to operate within a wide temperature range of -30° – 70° C (-22° – 158° F) for industrial environments. TI-WP100 Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. This wireless router features advanced managem
- Industrial AC1200 Dual-Band Wireless
- 4 x Gigabit PoE+ ports, 1 x Gigabit WAN port
- PoE power budget: 120W@48V DC input, 120W@24V DC input
- PoE alive check restarts unresponsive PoE powered devices
- PoE power scheduling, power limit, and port priority
- Hardened IP30 rated metal housing
- Operating temperature range of -30° – 70° C (-22° – 158° F)*
- Up to 8 SSIDs per band
- SSID to VLAN mapping
- Wireless WAN support (WAN load balancing/failover between wired Ethernet WAN and Wireless WAN)
- 802.1Q/Port-based VLAN support
- Inter-VLAN routing
- IPsec & SSL VPN (OpenVPN) support
- Redundant power inputs with overload current protection

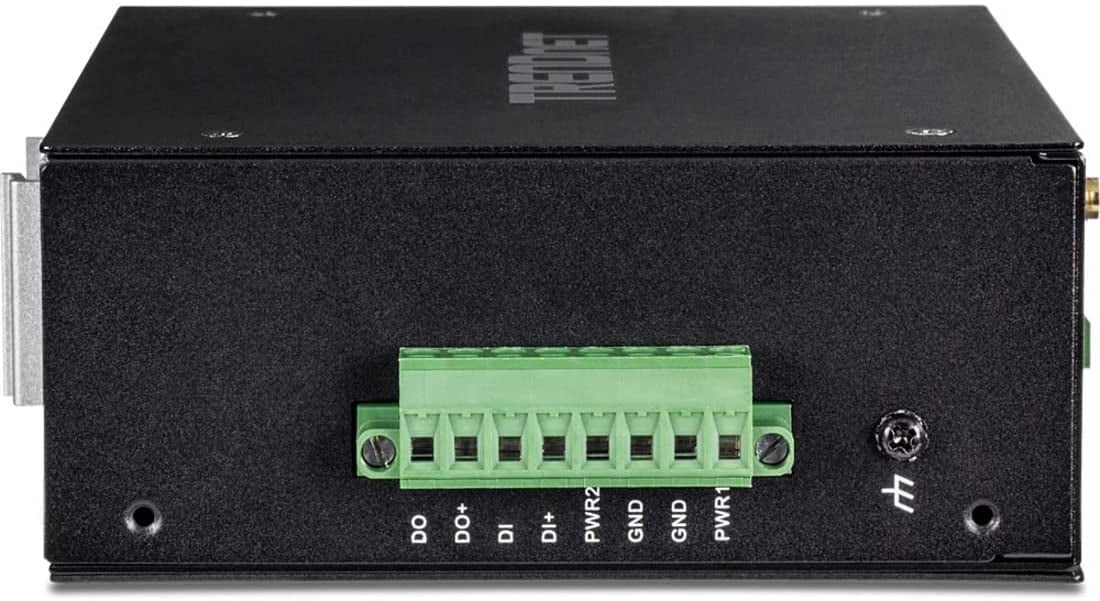

- Digital input/output
- Modbus serial port and virtual COM support
- Power supply sold separately (models: TI-S12048, TIS12024, TI-S24048)

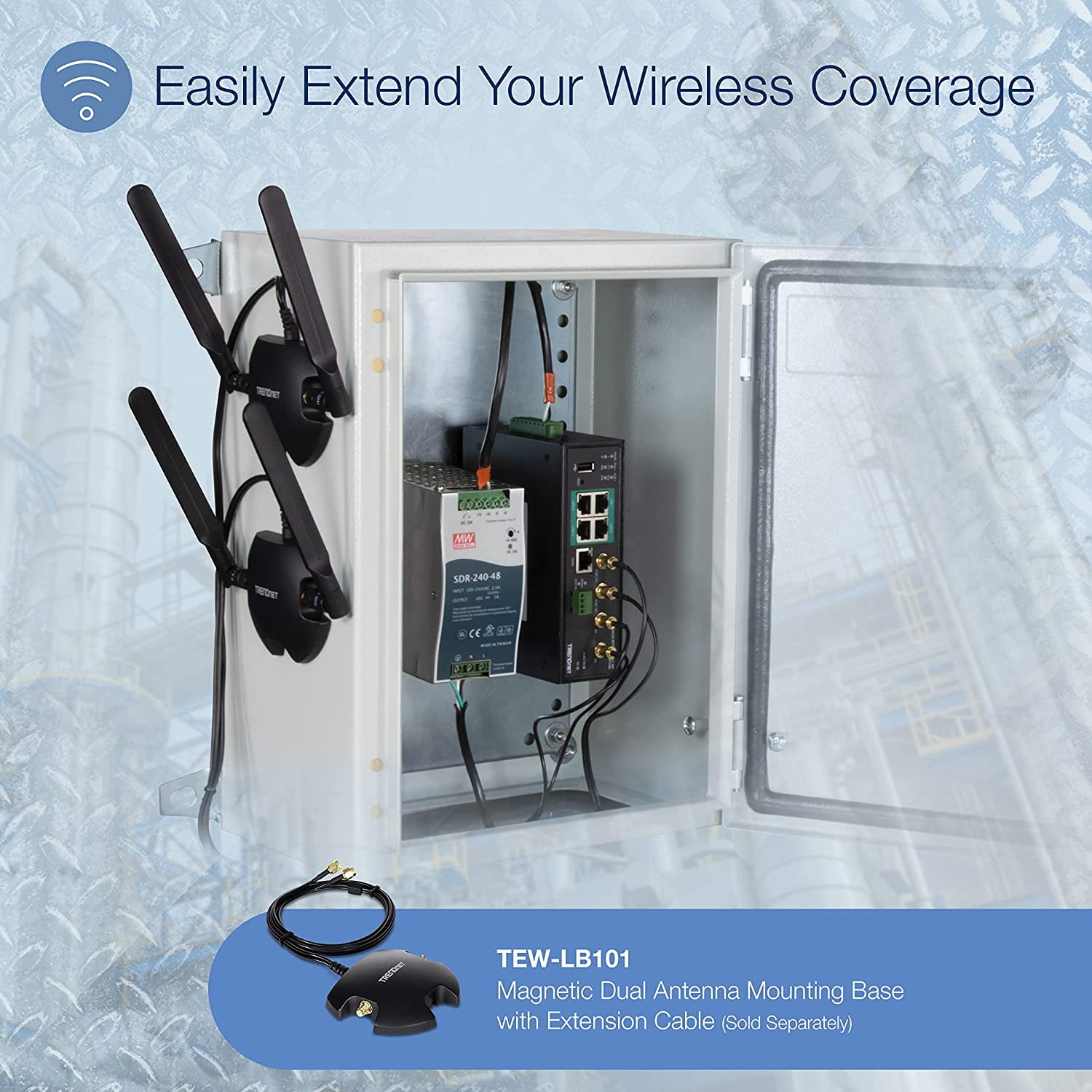

- Optional Magnetic WiFi Antenna base, model TEW-LB101 (sold separately)
| Router type | Commercial Router |
|---|---|
| Brand | TRENDnet |
| Wireless performance | AC1200 |
| Number of wireless frequency bands | Dual-Band |
| Wireless | IEEE 802.11ac |
| Interface type | Ethernet |
| Maximum download speed | 145.88 Mbps |
| Transfer rate | 867 Mbps |
| Number of ports | 4 |
| Features | POE |
| Frequency | 5 GHz |

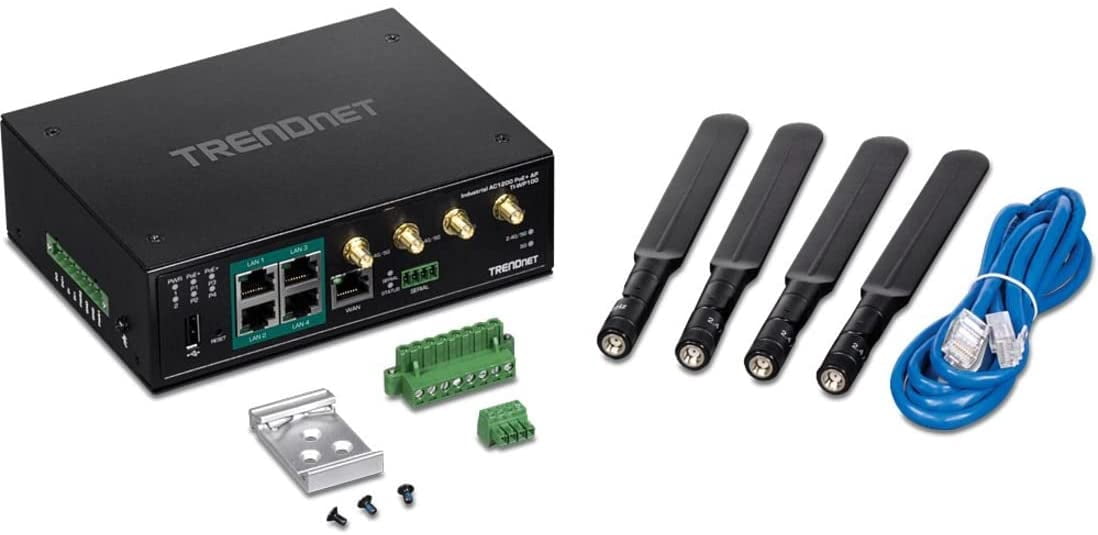

| Accessories | • TI-WP100 • Quick Installation Guide • 4 x detachable dual-band antennas • Network cable (1.5m / 5 ft.) • 1 x 8-pin removable terminal block (Power & digital input/output) • 1 x 4-pin removable terminal block (Serial) • DIN-Rail mounting bracket |
| Inputs/Outputs | Inputs - USB |
| Model name | TI-WP100 |
| In/Out type | Wireless |
| Input/output quantity | 5 |
| Number of antennas | 5 |
| Assembled product dimensions (l x w x h) | 6.30 x 4.72 x 2.01 in |
| Assembled product weight | 2.4 lb |
| Count | 1 |
| Has nrtl listing certification | N |
