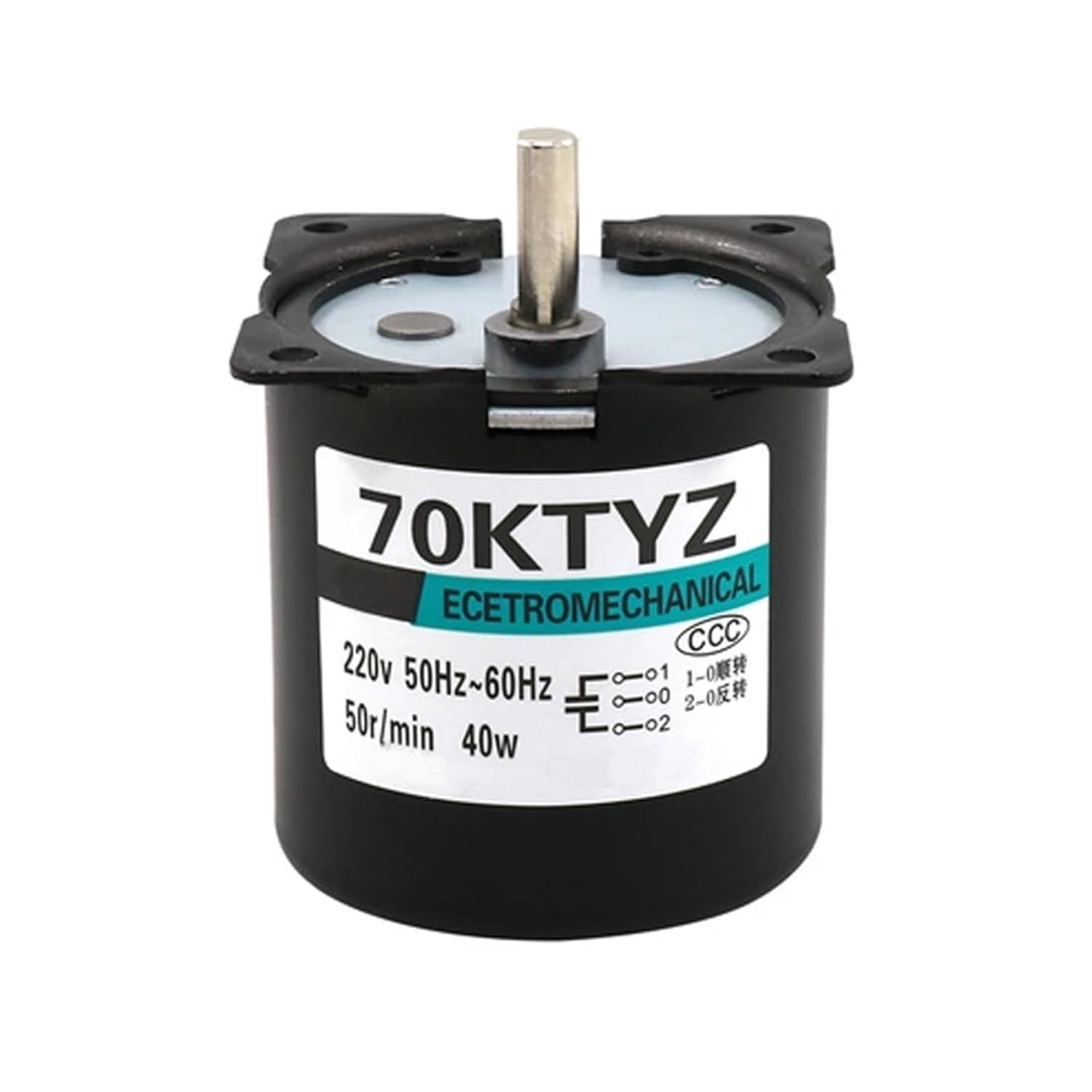

70KTYZ Mini Permanent Magnet Synchronous Motor 220V AC 40W Gear Motor 50Hz/60Hz Synchronous Low Speed ​​Reversible(220V 20rpm)

MotorsMotor introduction1. 70KTYZ miniature permanent magnet synchronous motor 220V AC with capacitor2. The motor has the following voltage options: AC 220V3. AC 220V; You can choose the no-load speed: 2.5rpm; 5 rpm; 10 rpm; 15 rpm; 20 rpm; 25 rpm; 30 rpm; 50 rpm minute; 60 rpm; 80 rpm; 110 rpmThe rated torque is between 3.5 and 160KGF.CM; select a no-load speed under AC 220V, and there will be a corresponding rated torque, please refer to the parameter table below.4. Motor rotation direction: CW and CCW; support reverse5. Power: 40W6. Working environment temperature: the lowest temperature -10 degrees to the highest temperature 70 degrees 7. The outstanding features of the motor: the motor is a permanent magnet synchronous motor; the interior is a metal gear; low speed, low noise; supports 24 hours of continuous operation; does not support speed adjustment; the service life is 6000 hours under normal use; use materials; small size; High Torque; Low Power Consumption; Ease of Use8. Motor application range: automatic grill; automatic dining table; curtain machine; stage lighting; dishwasher; automatic control, etc.9. Please refer to the information below for the torque, size, product picture or other information of the motor. ThanksThe following is the motor parameter tableRated frequency: 50Hz/60HzInsulation class: EThe materials and structure of the motor are introduced below.1. Full metal gear2. The wire inside the rotor is made of pure copper. More conductive, temperature resistant, prolong motor life.3. Imported lubricating oil is used to effectively control the temperature rise speed of the motor and make the motor rotate more smoothly.Size is for reference only, measurement will be slightly different, please note before purchasingWiringThe two black wires of the motor are connected to AC 220VThe green wire from the motor goes to one of the wires from t
